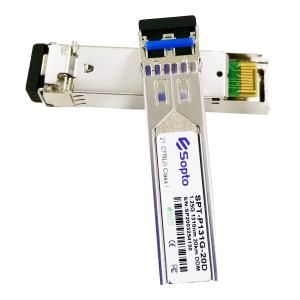

1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
Description of 1.25g sfp module
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features of 1.25g sfp module
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP laser and PIN photo detector for 20km transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring: Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1
● Compatible with ROHS
● +3.3V single power supply
● Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Specifications
| Product NO. | SPT-P131G-20D |
| Wavelength | 1310/1550nm |
| Fiber Type | Single mode |
| Transmission Distance | 10KM/20KM |
| Operating temperature | Standard: 0 to +70°C Industrial: -40 to +85°C |
| Date rate | 1.25Gbps/1.063Gbps |
| Connector | Duplex LC |
Optical and Electrical Characteristics
SPT-P131G-20D: (FP and PIN, 1310nm, 20km Reach)
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter |
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |
| Spectral Width (RMS) | σ | | | 4 | nm | |
| Average Output Power | Pout | -9 | | -3 | dBm | 1 |
| Extinction Ratio | ER | 9 | | | dB | |
| Optical Rise/Fall Time (20%~80%) | tr/tf | | | 0.26 | ns | |
| Data Input Swing Differential | VIN | 400 | | 1800 | mV | 2 |
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| TX Disable | Disable | | 2.0 | | Vcc | V | |
| Enable | | 0 | | 0.8 | V | |
| TX Fault | Fault | | 2.0 | | Vcc | V | |
| Normal | | 0 | | 0.8 | V | |
| Receiver |
| Centre Wavelength | λc | 1260 | | 1580 | nm | |
| Receiver Sensitivity | | | | -24 | dBm | 3 |
| Receiver Overload | | -1 | | | dBm | 3 |
| LOS De-Assert | LOSD | | | -26 | dBm | |
| LOS Assert | LOSA | -36 | | | dBm | |
| LOS Hysteresis | | 1 | | 4 | dB | |
| Data Output Swing Differential | Vout | 400 | | 1800 | mV | 4 |
| LOS | High | 2.0 | | Vcc | V | |
| Low | | | 0.8 | V | |

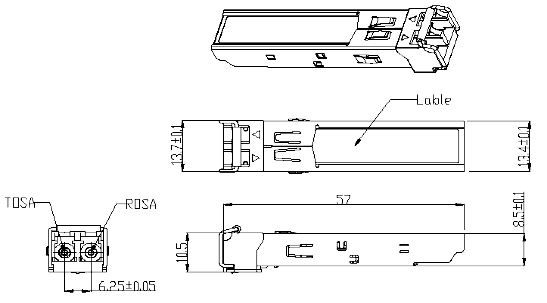

Mechanical Dimensions
Ordering Informations
| Part Number | Product Description |
| SPT-P131G-20 | 1310nm 1.25Gbps 20km 0ºC ~ +70ºC Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
| SPT-P131G-20D | 1310nm 1.25Gbps 20km 0ºC ~ +70ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
| SPT-P131G-20TD | 1310nm 1.25Gbps 20km -40ºC ~+85ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
| SPT-P131G-20T | 1310nm 1.25Gbps 20km -40ºC ~+85ºC Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
